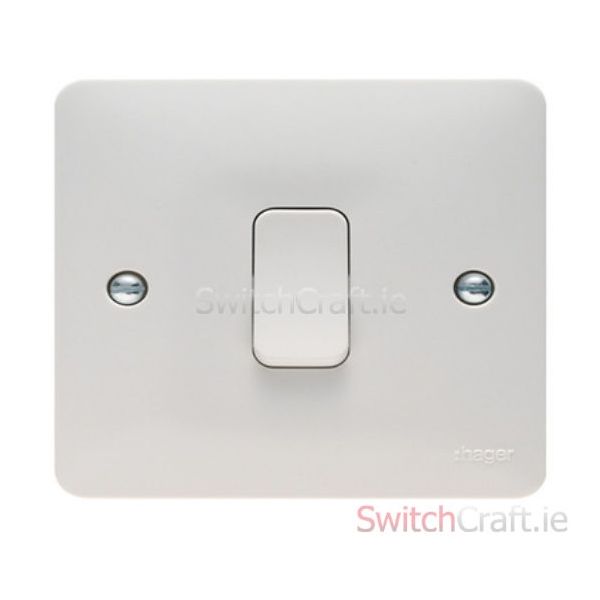

10AX 1 GANG 2 WAY WALL SWITCH

10AX 1 GANG 2 WAY WALL SWITCH

• Unique patented loop terminal allows neutral looping at the switch.

• Complies with BS EN 60669-1, a.c only.

• ‘X’ rated - No need to derate for uorescent loads.

• Two way switches can be wired either 1 way or 2 way.

• Clear terminal markings: 1-way L1, 2-way L2

• Capacity of each terminal 2 x 4.0mm2 conductors.

• For multigang switches use of a 25mm mounting box will provide increased wiring space.

• Supplied with M3.5 x 20mm long xing screws.
